Solar Switchboard Upgrade for Chelmer’s Air Conditioning System

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that supports a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was required.

Why Choose Precision Electrical & Air for Your Essential Switchboard Upgrade

This homeowner in Chelmer undertook a significant renovation project that encompassed the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire property. Additionally, a modern ducted air conditioning system was included as part of the overall upgrade strategy. Before these advanced systems could be connected, it was imperative to assess and enhance the existing switchboard to ensure compliance with the latest regulatory standards and effectively manage the heightened electrical loads introduced by these installations.

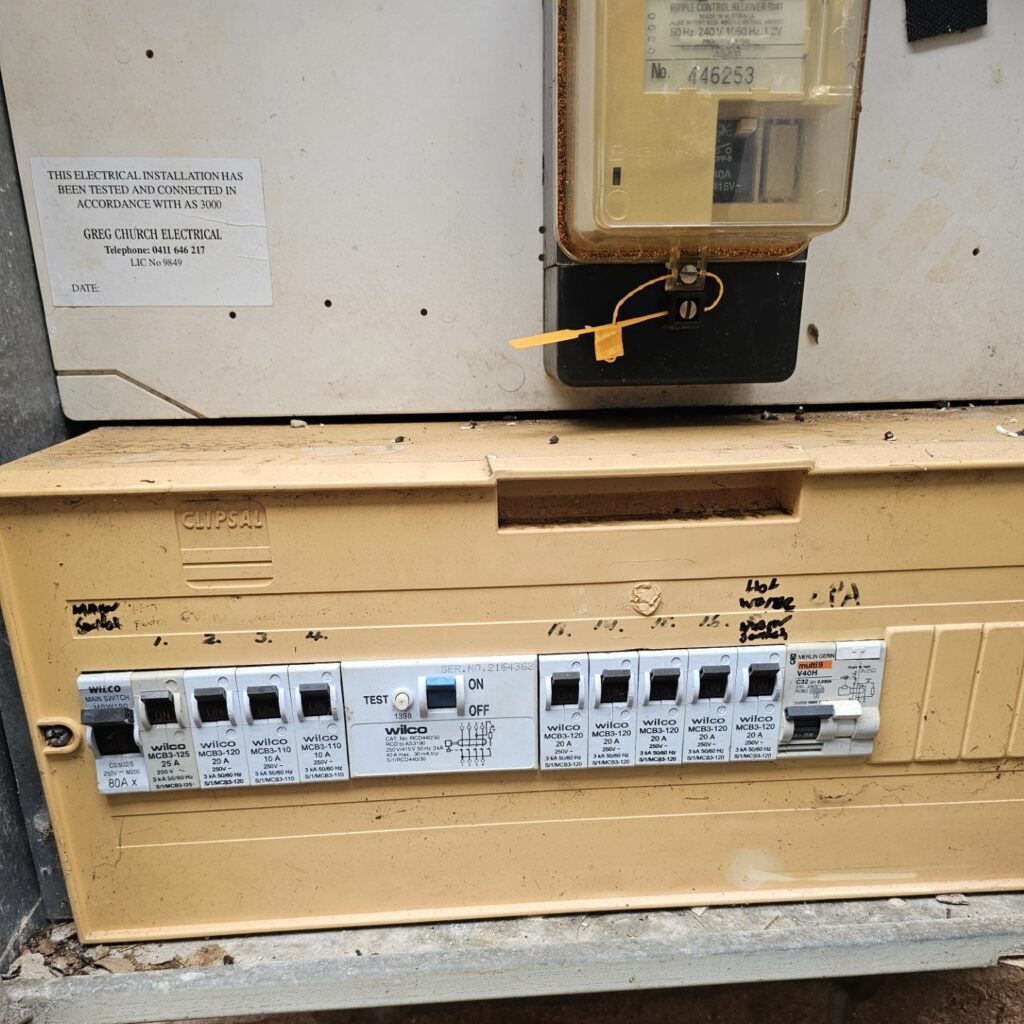

The original switchboard was outdated, featuring obsolete circuit breakers and only a single Residual Current Device (RCD) that offered limited protection for the entire property. This setup could not support solar energy integration or battery storage. Additionally, the circuit labelling was insufficient, rendering it non-compliant with the contemporary standards governing modern energy generation systems. This lack of compliance posed a significant risk, jeopardising the efficient operation of the newly upgraded systems.

Is a Three-Phase Upgrade Truly Necessary for Your System?

When assessing the specifications of a 17.86kW solar system paired with a 30kWh battery, a common misconception exists that a three-phase upgrade is essential. This misunderstanding can lead to considerable financial implications for the homeowner, potentially incurring costs ranging from £3,500 to £6,000, in addition to a protracted wait for approval from Energex for network modifications.

Thorough Technical Assessment to Determine the Need for Three-Phase Power

Two pivotal factors contributed to the conclusion regarding the necessity of a three-phase upgrade. First, the supply cable for the residence is strategically located near the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Second, the solar and battery systems are designed specifically to reduce demand on the grid rather than increase it, thus eliminating any technical justification from the network's perspective for the need for a three-phase upgrade. Further analysis indicated that the ducted air conditioning system also complied with essential parameters for effective single-phase operation.

Consequently, the decision was made to retain the existing single-phase configuration. The switchboard underwent an upgrade to ensure it could safely and competently handle all new electrical loads without compromising safety or compliance with regulatory standards.

Comprehensive Review of Installed Components for Enhanced Safety and Compliance

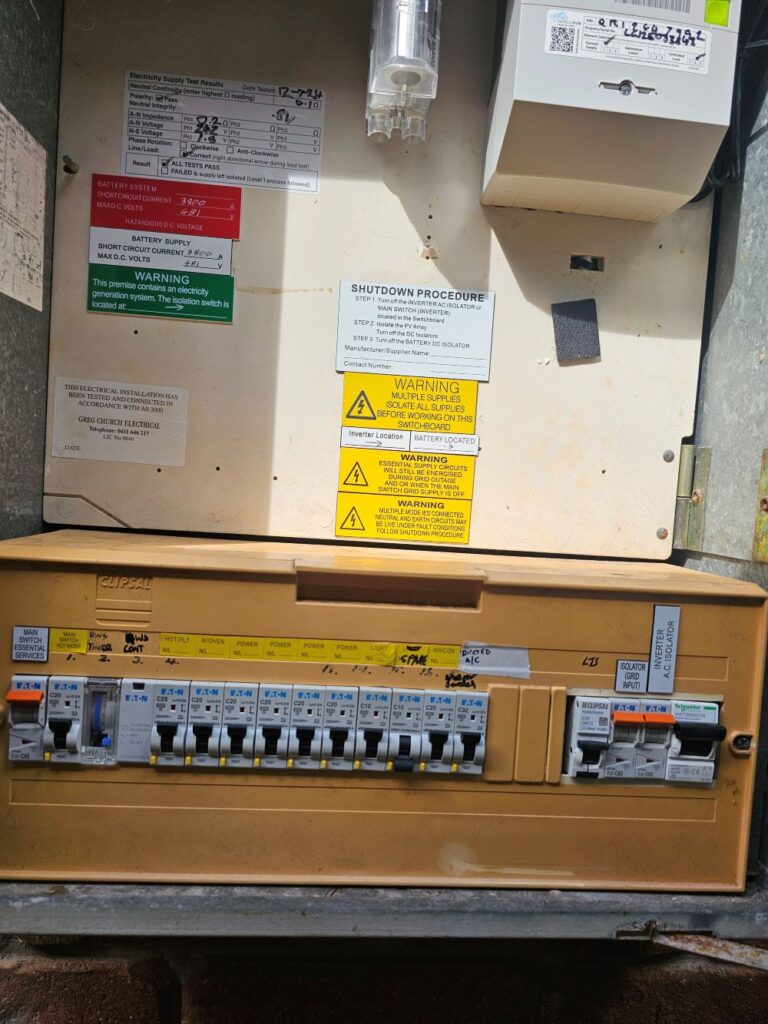

The existing switchboard underwent a complete dismantling and thorough reconfiguration. Every circuit breaker was replaced with new, appropriately rated units from Eaton, with each breaker meticulously labelled for easy identification. The circuits were carefully separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to improve safety and ensure compliance with current regulations.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces dependence on the grid by optimising the use of the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property.

Homeowner Reaps Benefits from Successful Upgrade

The homeowner now possesses a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they successfully avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in certain scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We promise no upselling occurs; you will receive an accurate evaluation tailored to your home.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property.
